LSDA TS900 Touch Screen Locks

LSDA TS900 Series Electronic Touchscreen Locks

Aug 22
2022

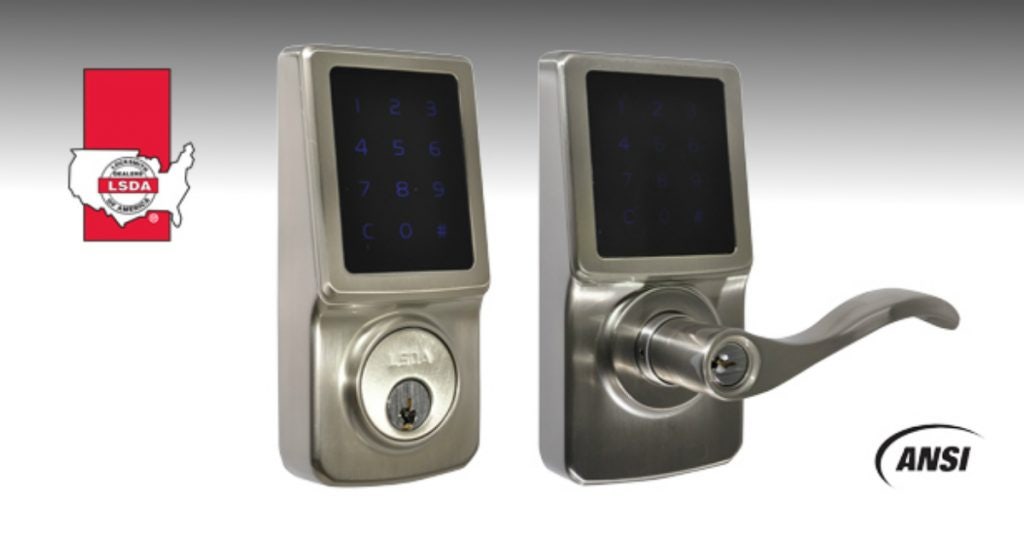

LSDA-Logo.jpgLSDA TS900 Series Electronic Touchscreen Locks are an ideal residential application for those with kids who are prone to losing keys. The LSDA TS950 Electronic Entry Lever Lock allows for keyed or keyless entry, a vacation mode disabling all code access and temporary codes for one-time usage. The LSDA TS900 Series is available as an entry function lever lock (TS950) or a single cylinder deadbolt (TS900).The LSDA TS900 Series Electronic Touchscreen Lock facilitates a secure one-time usage feature useful for delivery service or visitors when you're unable to grant them entry in person. Applications include residential Property Management and Multi-Family Housing.LSDA-TS900_FB-1024x538.jpg
Specifications
Electronic
Access Credentials:4-8 Digit PIN
Access Codes QTY/Style:25 PIN Codes
Audit Capabilities (Trail):N/A
Access Schedules:N/A
Lock Set Up/Software:Manually
Programming Features:Program at Keypad
Power Source / Battery Type & Life:4 AA Alkaline Batteries / N/A
Mechanical
Locking Device:Cylindrical
Grade:G2 Residential
Function:Entry and Passage (TS950 only)
Finish:US15/619 Satin Nickel
Design Style:Lyon (LY) Lever (TS950 only)
Key Override:Schlage C, 5-Pin
Latch:Adjustable 2-3⁄4" and 2-3⁄8" backset
Door Thickness:1-3⁄8" – 2"
Door Prep:
  • TS900: 2-1⁄8" or 1-1⁄2" diameter bore
  • TS950: 2-1⁄8" diameter bore
Strike:
  • TS900: Square corner strike with reinforcer
  • TS950: Full lip square corner strike
Handing:Field Reversible
Certifications:ANSI Grade 2 Quality, ANSI A156.25 compliant
Environmental:-31 to +150 F (-35 to +66 C)
Materials:Zinc diecast
Dimensions:
  • Deadbolt Exterior Lock: 5-7⁄16"W x 2-9⁄16"H x 1-1⁄64"D
  • Deadbolt Interior Lock: 6-55⁄64"W x 2-3⁄4"H x 1-1⁄2"D
  • Lever: 6-19⁄64" x 3-9⁄64" x 2-7⁄8", includes cylinder and gasket

Features:
TS900 Touchscreen Electronic DeadboltTS950 Touchscreen Electronic Entry Lever Lock
  • Type: Deadbolt
  • User Codes: 25 user codes, 4-8 digits each, holds up to 4 single-entry codes
  • Volume Control: Adjustable to work with environments
  • Vacation Mode: Deactivates all user codes temporarily
  • Auto Lock: With adjustable delay (10-99 seconds)
  • Keyway: SC1 Key Override
  • Code Probing: 4-digit random guiding code prevents code-probing
  • Incorrect Entries: Touchscreen temporarily disabled after 4 consecutive incorrect entries
  • Back-Light Color: Blue
  • Entry By: Push Button
  • Passage Mode: N/A
  • Type: Lever Lock
  • User Codes: 25 user codes, 4-8 digits each, holds up to 4 single-entry codes
  • Volume Control: Adjustable to work with environments
  • Vacation Mode: Deactivates all user codes temporarily
  • Auto Lock: With adjustable delay (5-99 seconds)
  • Keyway: SC1 Key Override
  • Code Probing: 4-digit random guiding code prevents code-probing
  • Incorrect Entries: Touchscreen temporarily disabled after 4 consecutive incorrect entries
  • Back-Light Color: Blue
  • Entry By: Push Button
  • Passage Mode: Can switch to passage mode (lock stays unlocked if switched on)
To place an order for LSDA TS900 Series Electronic Touchscreen Locks or for a quote, contact your local IDN Branch.© Copyright IDN, Inc.
